Simple Installation

• Single wire connects the control to all receivers and pumps.
• Flexible to deploy from simple requirements to complete plant wide materials handling.
• Bespoke conveying solutions to meet individual requirements.

System Compatibility

• Integrates with existing range of Maguire conveying equipment.
• Can be integrated with many other manufacturers equipment.

Total Conveying Control

Key features:

•  Adjustable load
• Unload
• Priority
• Proportioning
• Purge
• Blowback
• Alarm settings
• Line cleaning
• Retrofit to existing pumps and existing receivers

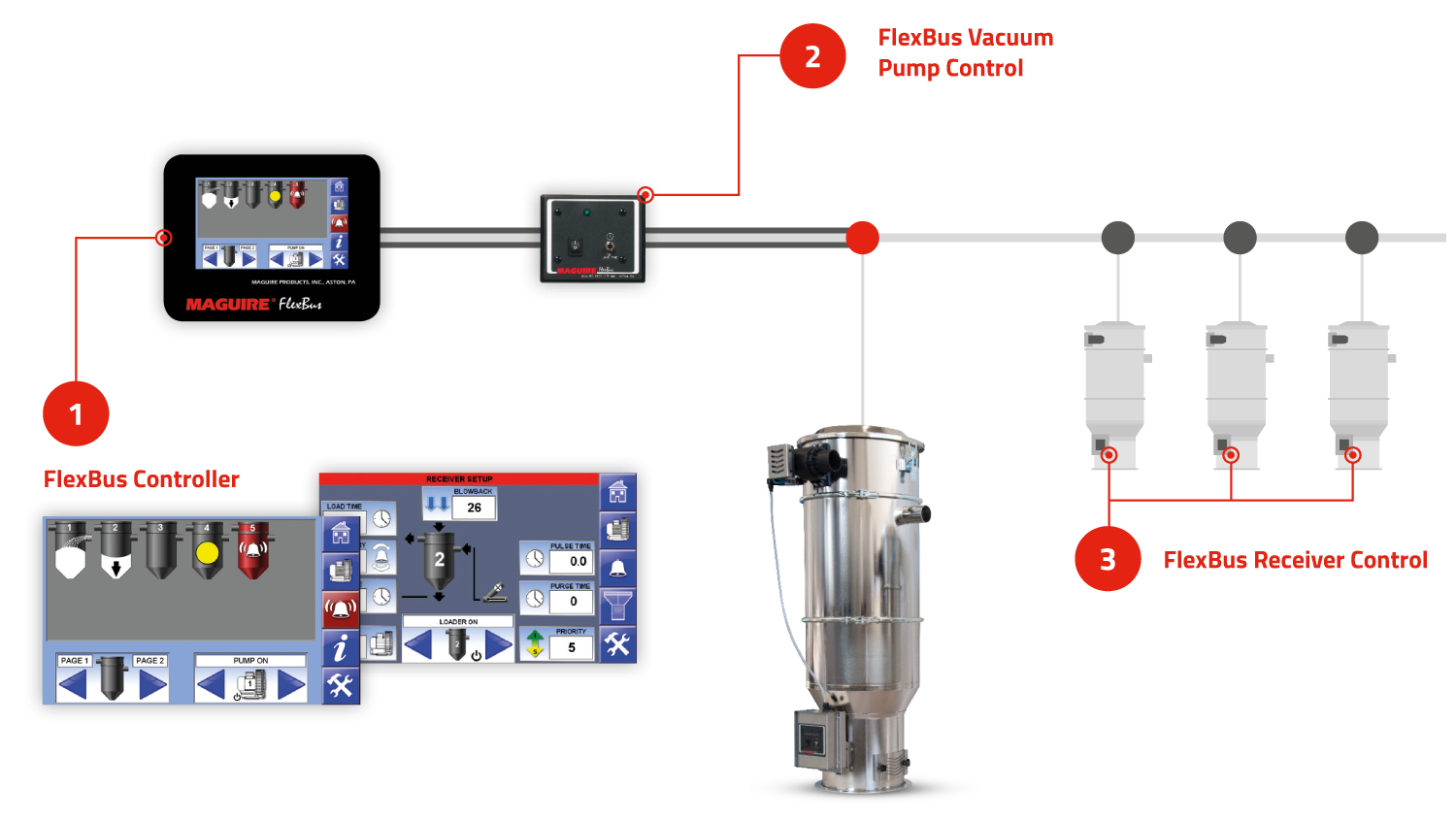

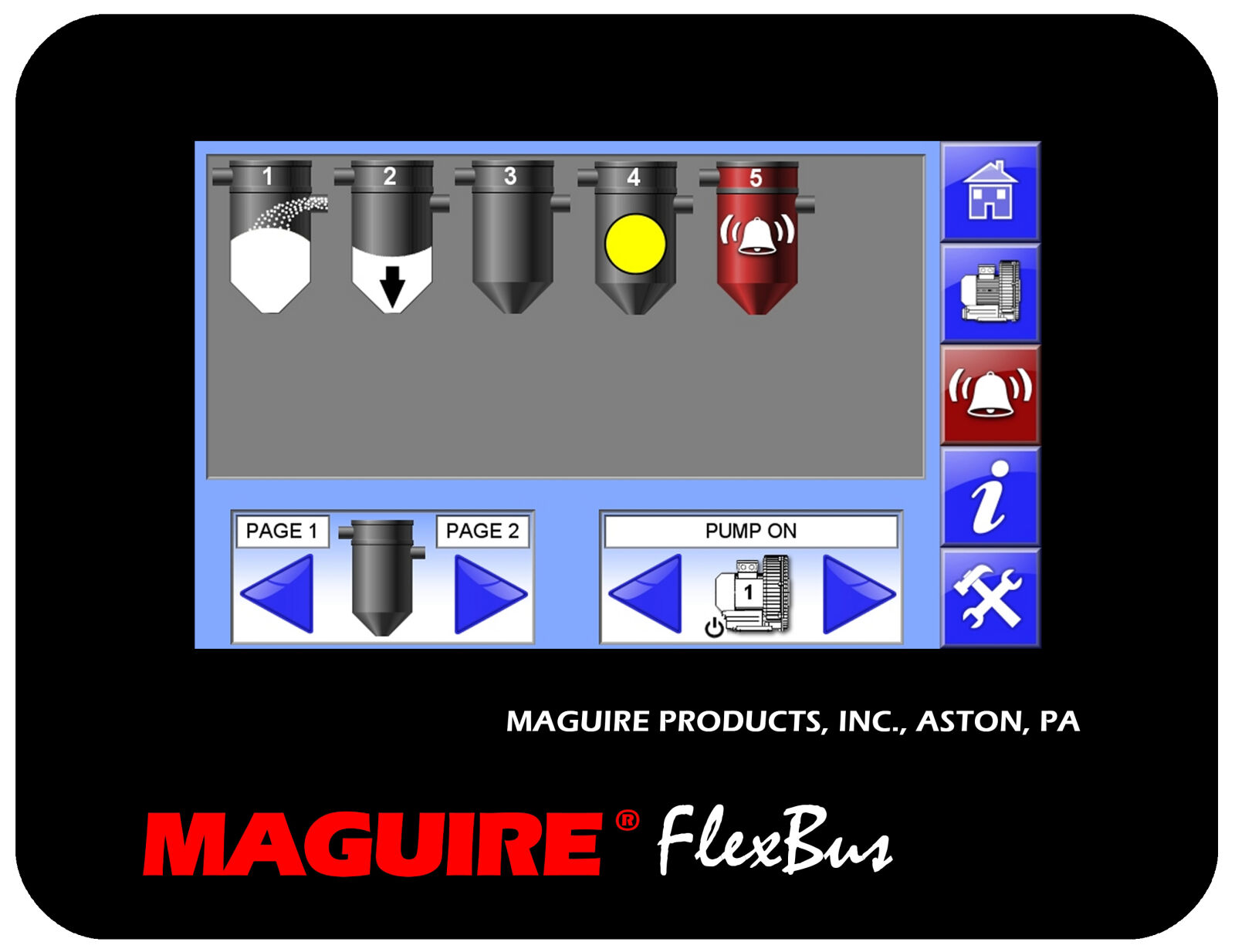

FlexBus Controller

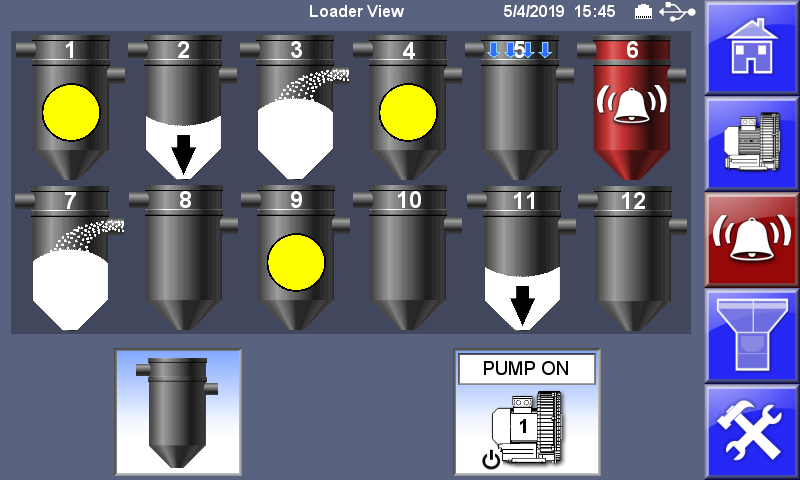

• 7” color touchscreen
• Easy access to receiver and pump features
• Auto ID of receivers for easy expansion
• Single cable CANbus connectivity
• Audible and visual alarms
• 24 VDC control voltage

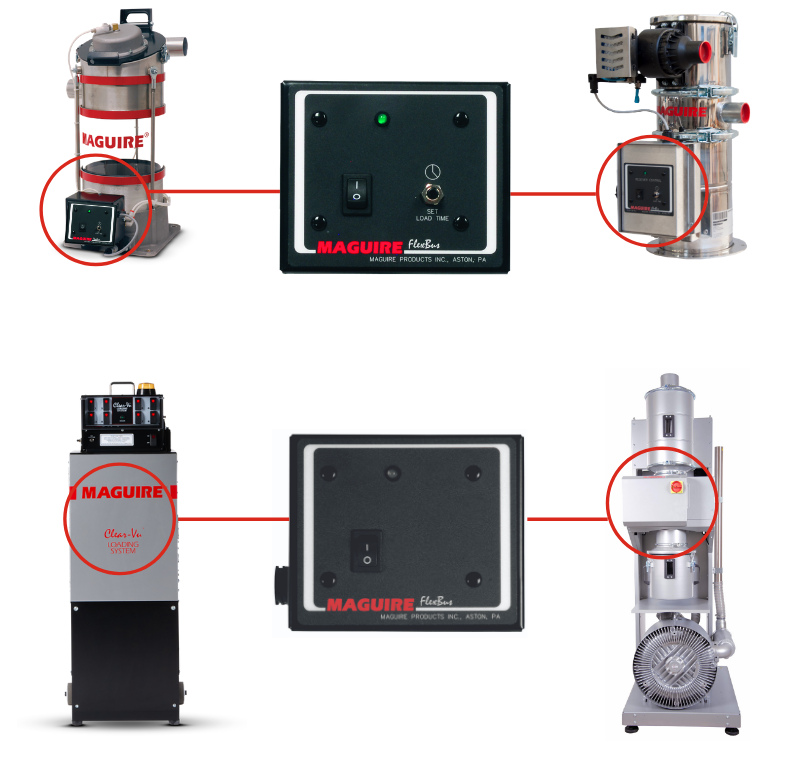

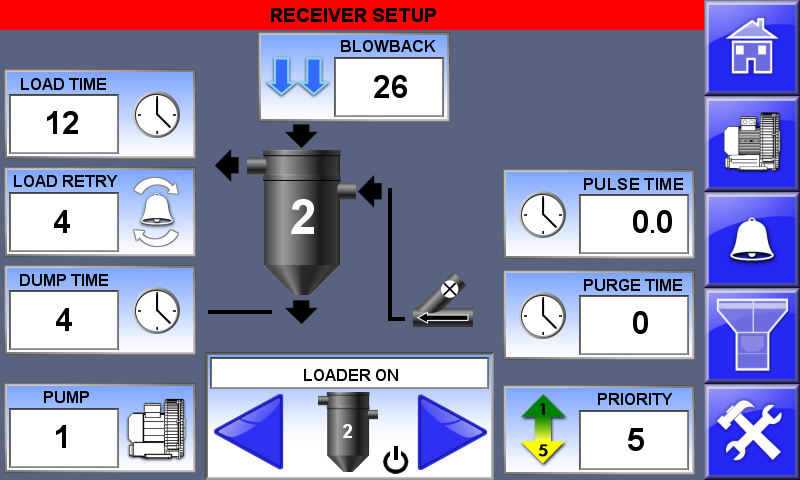

FlexBus Receiver Control

• Control interface for FlexBus Lite / FlexBus central systems
• Allows third party interface via 24 VDC
• Easily convert third party receiver to run on FlexBus
• Quick & easy to retrofit

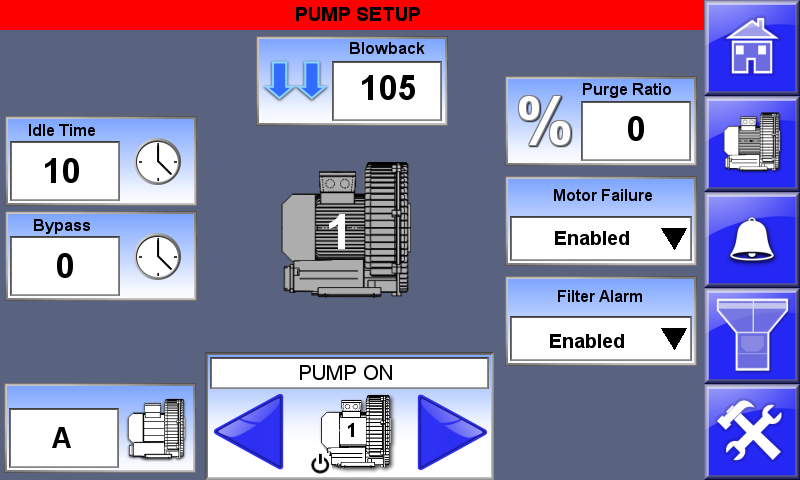

FlexBus Vacuum Pump Control

• Control interface for FlexBus Lite / FlexBus central systems
• Allows third party interface via 24 VDC
• Easily convert third party receiver to run on FlexBus
• Quick & easy to retrofit
