Pipe & Profile Extrusion Process

Maguire offer Pipe and Profile extrusion processors complete raw materials handing solutions for blending, dosing, drying, and conveying

In addition, with the Maguire + Syncro partnership we provide modular and comprehensive upgrades for all types of mono and co-extrusion Pipe and Profile lines. From WXB Gravimetric Blending with integrated Extrusion Control, Gauging System upgrades, Surface Defect Monitoring, Diameter Monitoring and Control, and Inline and Offline Recycling to maintain primary value of scrap, and feed directly close-loop back to Gravimetric Blending systems.

With 30+ years of Pipe and Profile extrusion application experience, backed with thousands of installations globally, Maguire have supplied a diverse range of industries - from building, automotive, medical, and consumer goods, to furniture, agriculture, leisure, utilities, machinery, electronics and packaging.

Pipe and profile experience

Pipe & Profile Benefits

WSB Extrusion blenders

WSB Gravimetric Blenders

Control the flow of material and haul off speeds.

Process control.

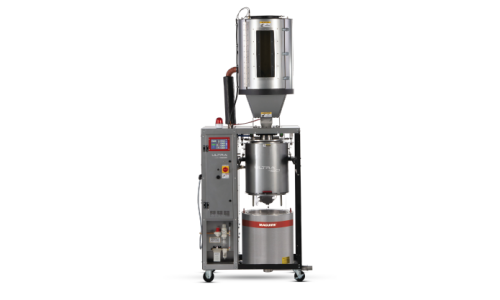

ULTRA dryers page

ULTRA Efficient Drying

Energy efficient vacuum drying method.

Faster drying, faster start-ups, significantly lower maintenance

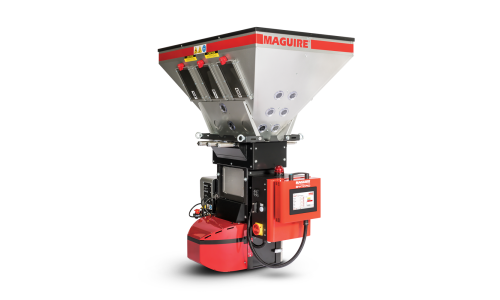

Maguire WXB 460

WXB Gravimetric Blenders

Up to 10% material cost reduction from automatic gram/meter / micron regulation.

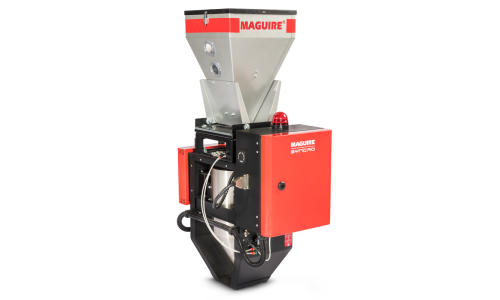

LIW 05

LIW Loss-in-Weight

Automatically regulate extruder and haul-off speeds to always be on target.

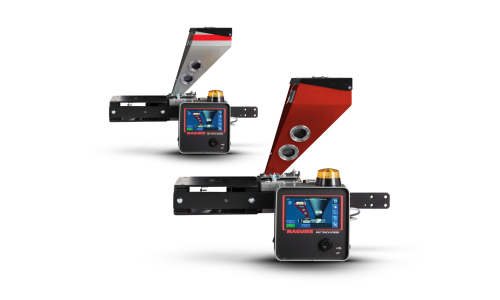

MGF Gravmetric Feeder

MGF Gravimetric Feeders

Reduced start-up material waste & changeover scrap.

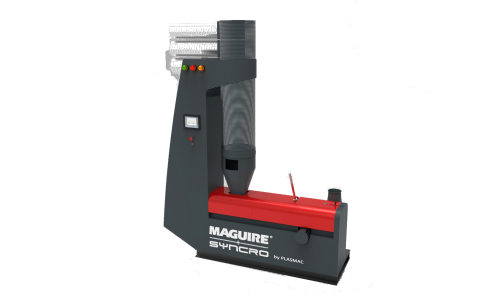

Alpha Inline Recycling

Inline & Offline Recycling

Recycle primary grade scrap into primary grade product directly.

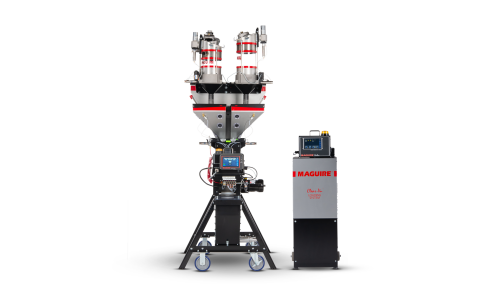

Maguire WSB Blender GHR Receivers and MLS conveying system

Conveying Systems

Wide range of materials conveying solutions for small, medium and large applications.


Surface Defect Monitoring

Improve surface defects such as asprotrusions, throttling, abrasions, local insulation lack, partial detachments or flakes.

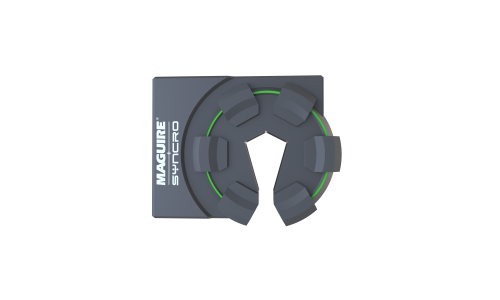

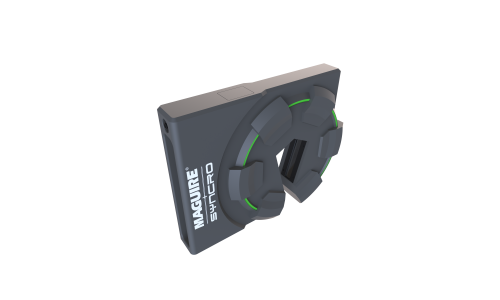

Diameter Monitoring & Control

Non-contact measuring device for precise diameter control of pipes.

Automatic extruder & hauling control.

3x product types available suited to different diameter sizes.

LowPro Loader

LowPro Conveying System

Ideal for individual conveying applications for single and multiple material stations.

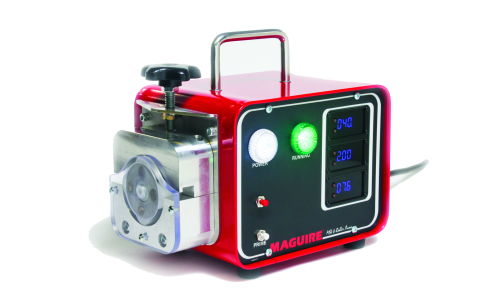

Liquid Color Pumps

Liquid Color Pumps

Easy and precise metering of liquid color & additives.

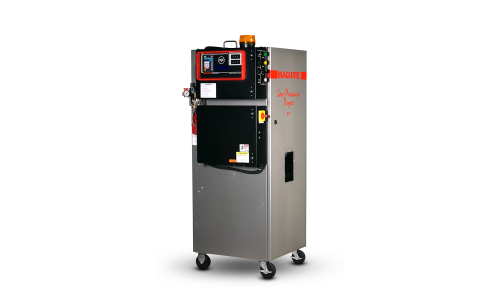

LPD 30 Dryer

LPD Dryers

Energy efficient drying for small technical drying.

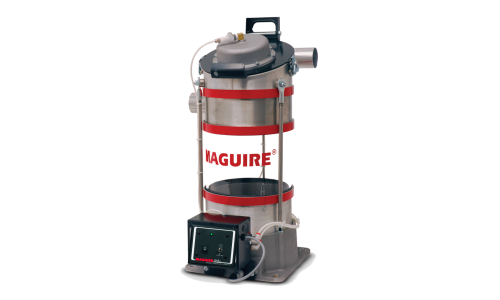

GHR Clear vu receivers

GHR Clear-Vu Receivers

Clear-Vu™ receivers for easy visual status on loading.

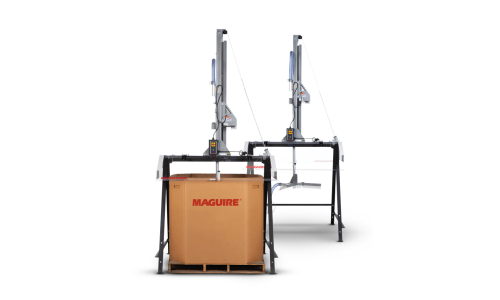

Sweeper system


Smart unloading for gaylords & octobins.

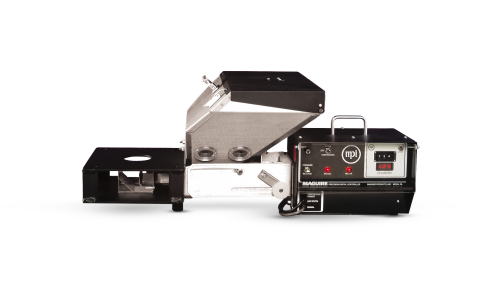

Volumetric Feeders

Volumetric Feeders

Volumetric feeders for granule, powder, regrind and liquid.

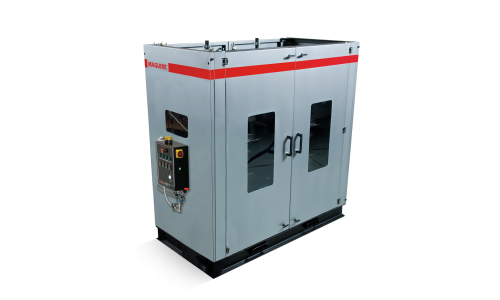

PRS Purging Recovery

PRS Purging Recovery

Transform purgings into high quality regrind.
